Golf Shaft Stiffness

The most common question I am asked while club fitting is about shaft stiffness. Is this shaft right for me? Is it stiff enough? Is it too soft? How stiff is this golf shaft? That question is on the mind of anyone who has ever been curious about their golf clubs. Club makers have been trying to answer that question for a long as I can remember. In this article I discuss the both the science and the mythology of golf shaft stiffness.

The first tool commonly used was a deflection board. The butt of the shaft is clamped, a weight is hung on the tip and the amount the shaft bent was used to rate the shaft’s stiffness. This was and still is, an excellent way to rate shafts. I have a deflection board with a scale built in the gives me an exact rating of shaft stiffness in decimal ounces.

The problem is that none of the shaft companies used the same board. Or used it in the same way. Shaft sales and marketing staff created a letter system, LARSX, Ladies, Amateur, Regular, Stiff, X-Stiff. Brunswick shaft company patented a numbering system 4.0, 4.5, 5.0, 5.5, etc. The golfer was and still is confused about these numbers. The club making community made their own attempt at creating a standard. To date, the only standard is confusion.

I began my journey to understand the golf shaft about 15 years ago. I now have a database containing measurements of over 4000 different shafts. For those that are looking for a simple basis for comparing shafts, I use a method recommended to me by Jeff Meyer, Area Under the EI curve. Jeff has spent most of his life in the golf shaft business. The idea came to him when he was the shaft guru at Acushnet Golf. As you watch this animation you will understand the concept.

The best ideas are often the simplest. Area under the EI curve is easy to compute once you have the inch by inch measurement. You add them up. To compensate for shafts of different lengths you divide the sum by the length of the shaft measured. To create a simple index, I divided that number by a common factor to create an easy to understand two digit stiffness index. Articles at Golf Shaft Reviews give a EI Area stiffness index for each shaft measured.

One of my friends, a fellow fitter who has been working with EI graphs since the very first day I began measuring them asked why I would reduce the elegance of the EI profiles to a single number. My answer is this. If you are going to use a number to try to understand shaft stiffness, be it LARSX or 4.0, 5.0, 6.0 7.0, area under the EI curve is a better number. It indicates all of the shaft, not just a single point. Is it the best way we now have available? No. Knowing the shape of the EI curve and its relationship to other shafts is the best way. But without knowing and studying the EI profiles of the thousands of shafts I have measured, it is better than the alternatives. And given that the measurements were all taken the same way with the same instrument, it transcends manufacturers, models and weights.

Lets look at some of the other ways shaft stiffness is presented and marketed.

Shaft Frequency

The concept of using shaft oscillation frequency is discussed in the 1968 book, “Search for the Perfect Swing” by Alastair Cochran and John Stobbs. “Search for the Perfect Swing” is one of the first explorations of golf technology. In Appendix I a formula for frequency includes “E=an elastic property of the material of the shaft” and “I=a quantity which depends on the precise cross-section of the shaft and which represents its ability to resist bending”. If you read that article you will realize the authors are saying frequency might be useful, but the complexity of the calculation was not likely to make frequency an easy way to define golf shaft stiffness.

Dr. Joe Braly introduced club makers to using the rate of oscillation of a shaft (frequency) to understand its stiffness. In the 80’s he did research on the PGA tour. Dr. Braly was the owner of Brunswick Shaft company which later branded the Project X shaft. He used a frequency instrument to measure the shafts used by the tour players. From this research, he developed a formula for the stiffness ratio of the different irons in the set. He found In a typical tour player’s iron set, the average step in frequency from club to club was 4.3 CPM (cycles per minute).

Inspired by the research done by the Braly’s, a club makers’ organization, the PCS, endorsed and taught frequency-based club making to its many, many members. It was a time when shaft design was not as complex as it currently is. And frequency instruments were a popular tool among club makers for measuring shaft stiffness. Unlike other stiffness tools at the time, they could be calibrated to a standard and gave a numeric value.

The PCS recognized that frequency measurements were affected by clamp pressure, clamp length, weight and the actual instrument being used. Software, knows as “The Equalizer”,  was sold to PCS members. It came with a calibration stick used to standardize the readings to a common denominator across instruments. During its dominance as a club makers organization, the PCS did not allow discussion of alternative shaft stiffness systems. Nor did it inform its membership that the shaft designers and manufacturers primarily used EI for understanding shaft stiffness.

Design changes were made to frequency instruments to improve accuracy. Standard value tables were published to guide clubmakers building frequency matched sets. I know, I wrote one of them. But no one in the club making community ever questioned the science behind the system. Until I did. The Ah Ha moment came in a shaft company R&D lab when a design engineer explained the limitations of frequency measurements.

Frequency vs EI

Let’s take a look at an EI chart of three shafts with the same frequency. Each of these shafts has a frequency of 354 on my instrument. I use a pneumatic clamp, clamped 7″ from the butt of the shafts. These are 6 iron shafts and were measured with a 261 gram 6 iron head. Seven inches, the Fujikura standard, is still used by some club manufacturers and shaft companies.

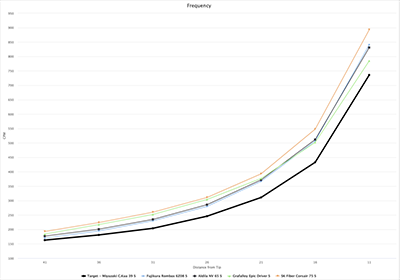

 As you can plainly see, these three shafts with exactly the same frequency are quite different when viewed with EI analysis. Tom Wishon, then at GolfSmith, recognized that butt frequency alone did not work. He measured frequency at several points down the shaft while sorting a box of iron shafts for a set he was building for a PGA tour pro. That evolved into a system of measuring the shaft with a frequency instrument at different points down the shaft. With that, the term ‘shaft profiling’ was born. That system was flawed in more ways than I want to discuss here. It gave very crude charts of stiffness down the shaft when compared to EI charts. If you want to understand the relationship and the difficulty of using frequency to estimate EI, read page 205 of Cochran & Stobb that I referred to at the beginning of this section.

Shaft frequency is not of much use in evaluating shaft stiffness. A shaft designer in an R&D lab showed me that frequency instruments measured only a small section of the shaft just below the clamp. The problem for club makers and fitters who recognized the importance of shaft profiling was that there was not an affordable EI instrument until I designed and manufactured one. They used frequency instruments because that was all they had. As with all technologies, instruments and expertise evolves. Frequency profiling and frequency rating of shaft stiffness were an attempt by club builders to reverse engineer shaft knowledge not shared by the shaft companies. With my affordable EI instrument, the knowledge gap between the shaft engineer and the club fitter is closed.

Shaft Stiffness Labels – LARSX

Most shafts have a stiffness label. These labels are referred to as LARSX by club makers, Ladies, Amateur, Regular, Stiff, X-Stiff. As we all know, there is no standard for assigning stiffness between manufacturers. But, what you may not realize, is that there is no standard for assigning these labels to different products made by the same manufacturer. As of this writing, some manufacturers are no longer using the LARSX labels. Let’s look at three different KBS shafts from the past, all labeled S flex.

As you can see, the KBS 120 gram Tour and C-Taper have very similar stiffness at the butt. The 110 gram C-Taper Lite also labeled S flex is much softer throughout the shaft. This is quite common. KBS shafts were at hand when I was measuring and creating charts for this article. They are not unique in this practice as all shaft companies do this. Most recent KBS labels now show model and weight and the stiffness labels are gone. To make any sense out of shaft company labels you must recognize that LARSX refers to shaft stiffness of that particular model and weight. It does not apply to shafts of different models or weights.

What you might have started to notice here is that Jeff Meyer’s system, area under the EI curve, as a single metric rating system, is the best way we have at the moment to compare shaft stiffness.

Shaft Stiffness Labels – 4.0 ~ 4.5 ~ 5.0 ~ 5.5 ~ 6.0 ~ 6.5 ~ 7.0

The Rifle shaft produced by FM precision/Brunswick/Royal Precision (different names, same company) introduced and patented a numeric stiffness rating system. It was a detailed system for relating swing speed to shaft stiffness. Using shafts that were both weight and frequency sorted in the factory, the club maker made iron shaft sets by matching swing speed to shaft stiffness. It was revolutionary in its day as it was he first systematic attempt at shaft fitting. There are many club makers still using the Rifle system or variations of it.

The Royal Precision shaft company was purchased by True Temper and with that purchase True Temper acquired the Project X brand and the numeric stiffness rating patent. Here is a look at how that system is currently applied.

Two shafts, the Project X and the Project X LZ are both labeled 6.0. The EI measurement clearly shows these shafts have different stiffness. Once again, we see that stiffness labels on shafts show the difference in shaft stiffness within models not between models.

Now, let’s loop back to butt frequency and add another shaft to this chart.

The frequency of these three shafts is Project X 5.0 = 350, Project X 6.0 = 363 and Project X LZ 6.0 = 349. Notice how the Project X 5.0 and the Project X LZ 6.0 are similar in the butt area, having the same butt frequency. They are quite different in the mid zone. And once again, take note of the EI area rating of these two shafts. After years of club fitting experience, I recognize the huge differences in how these shafts will perform based on the EI profile of the mid sections and the overall stiffness rating.

What do we know about Golf Shaft Stiffness

Back to the question posed in the opening sentence of this article, How stiff is this golf shaft? The designation printed on golf shafts to rate golf shaft stiffness do not work across brands or even across models within brands. Most experienced club fitters use their experience to understand golf shaft stiffness. Some still use frequency to rate the shafts they work with.

With stiffness and profile in mind, the fitter tests golfers’ performance and reaction to various shafts. A sense of what works and does not work develops through experience. The key to understanding shaft fitting is experience. Years of experience relating shaft profiles to player reactions. Without a system to accurately understand the stiffness of the golf shaft fitting is based on guess work.

Thanks to Jeff Meyer’s insight, club fitters have access to a systematic knowledge base to quickly understand golf shaft stiffness and properties.
